Video Wall Controller
Video Wall Controller
Innovative Artistic Video Wall Controller & Processor
Simplify complex settings
Support 100m remote control
Support rotations of 90°, 180°, and 270°
Support Visualized and artistic splicing control
Support Output resolutions to 4K and up to 8K@30Hz

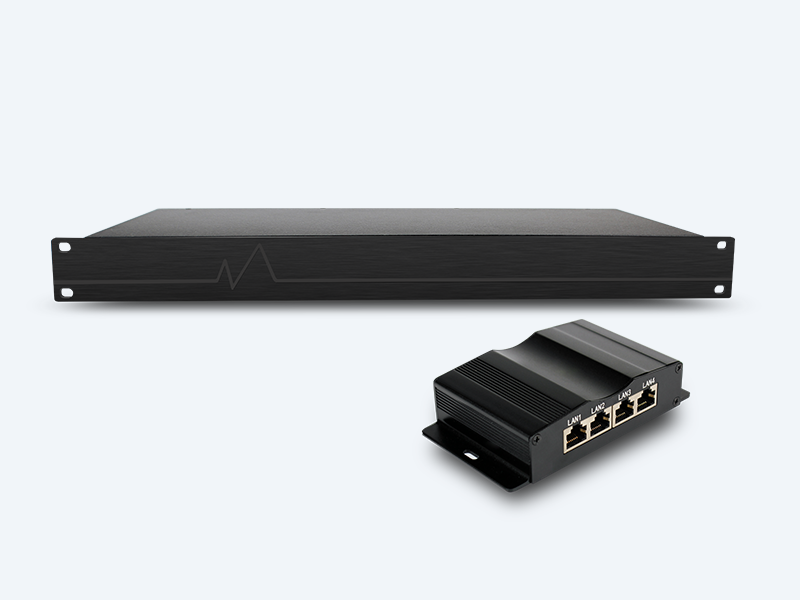

GK Video Wall Controller
GK Video Wall Controller is a multifunctional 4K high-quality image processor
- Spliced into a variety of irregular shapes at 360 degrees, showing creative and various content.
- Simplify complex settings, only need to connect PC with controller. Easy to setup.
GK video wall is different from traditional grid or matrix pattern. It will attract more attention, or serve as a unique artistic feature in exhibition, lobby, shop window and mall. Allow users to display artistic images and videos through wall controller to create more space utilization value and visual effects.
Support 100m remote control
Using lossless compression technology,
through the encoder and RJ45 cable,
can expand the transmission distance up to 100m,so computer can be easily controlled from a distance.
*The distance from computer to display screen can be up to 100m
Output 1080P for every HDMI port
Support HDMI 1.4a high-quality output for every HDMI port.When the output is more than 16 ports , the highest resolution can be up to 8K@30Hz.

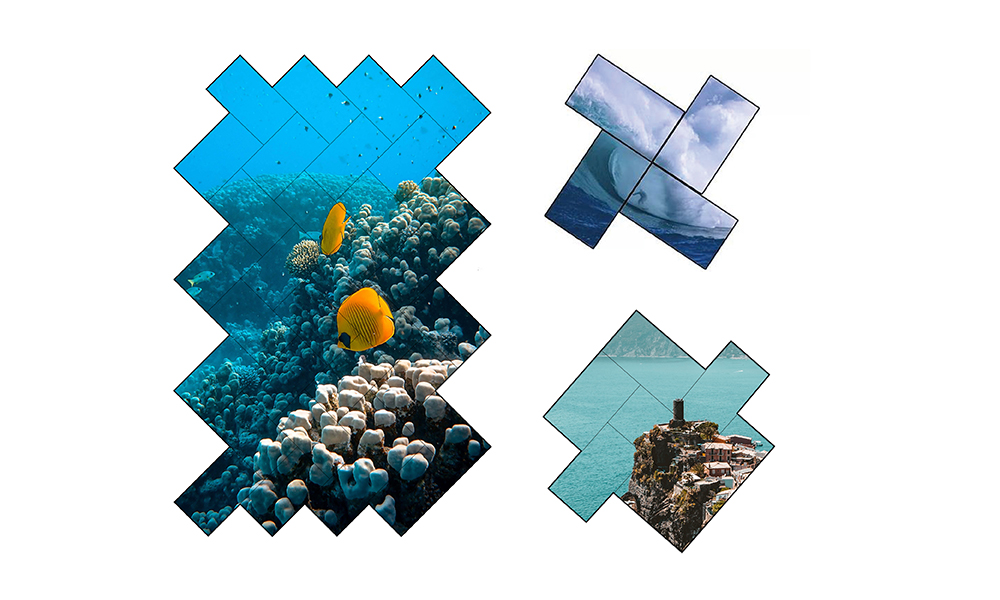

Visualized and artistic splicing control
Support point-to-point screen function. Each image will not be distorted when rotating at any angle.
Support multiple devices in series, up to 64 ports output
Support 64 ports output at most. For more splicing needs, additional ports controllers can be customized.

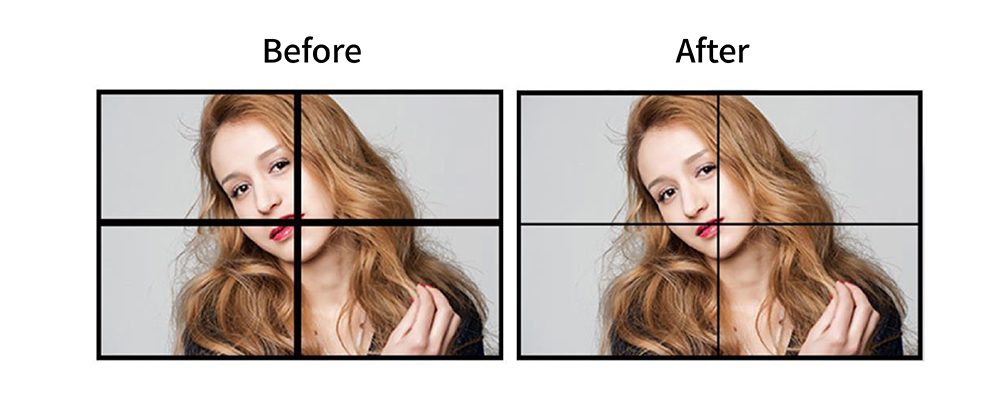

Frame elimination, splicing more natural
Support image edge adjustment to make it more natural. The images won’t feel cut, the proportions are preserved well.

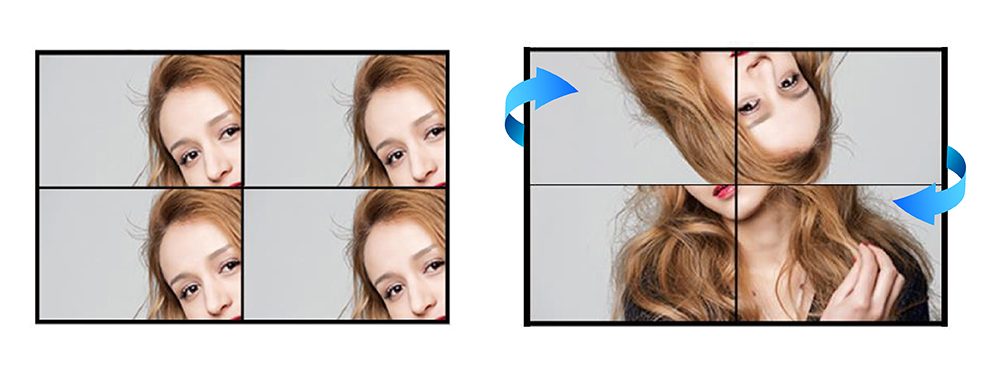

Copy and reverse each screen
Copy feature: All screens present the same.
Reverse feature: Can reverse for the upper and lower rows
or any screen.

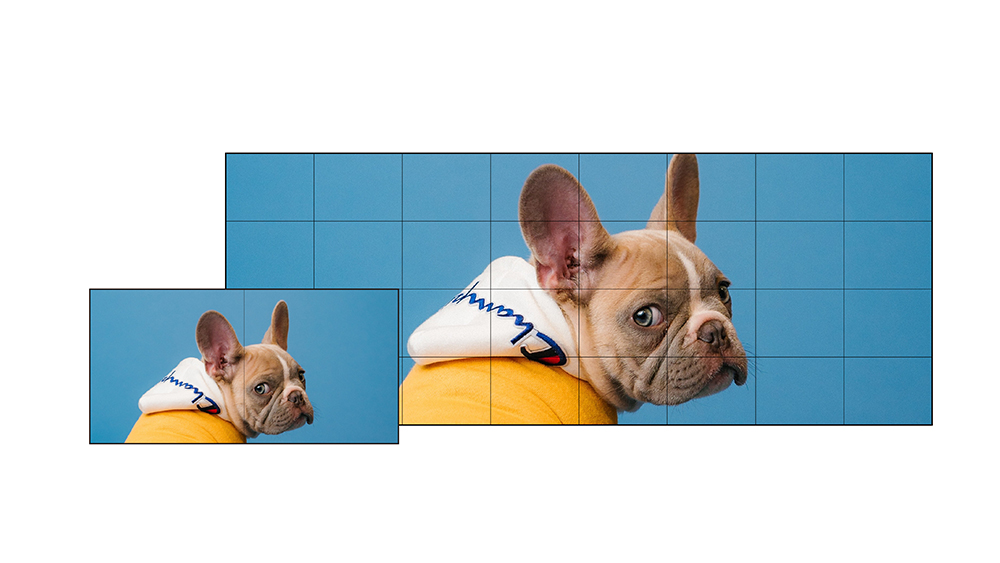

Free scale and position
Suitable for exhibition, lobby, shop window and mall etc.
| Input Interface | USB3.0 |
| Output Interface | HDMI 1.4a X 6 |
| Resolution | Artistic Video Wall: 8K–7680*4320 ， 4K–3840*2160， 2K–1920*1080 Video Wall: 1920×1080，1280×720，1024×768 ，800×600 |
| Operation System | Windows10 (pro) intel I5 (10th Gen), dual channel 8GB ram |
| Connection | USB 3.0 cable；RJ45 network cable |
| Power interface | 12V2A |
| Power Supply | AC 100~240V , DC 12V 2A /DC 12V 5A |
| Series mode | This model is 6 ports, multiple units can be connected in series, supports up to 64 outputs (12/18 ports type is also available) |
| Contents | Processor*1, Encoder*1, USB3.0 data cable*1, HDMI transmission line*1, RJ45(5M)*1, 12V2A adapter*1, 12V5A adapter*1 |
| Weight | Gross weight:3.37Kg/ Encoder:184g |
| Size | 440mm x 226mm x 56mm / Encoder:105x75x30mm |

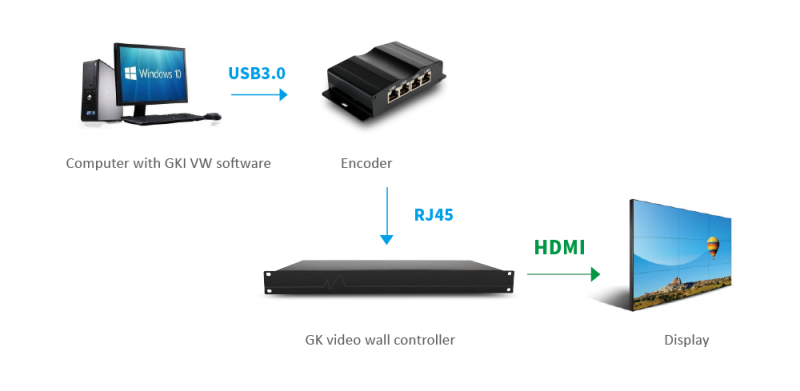

Diagram

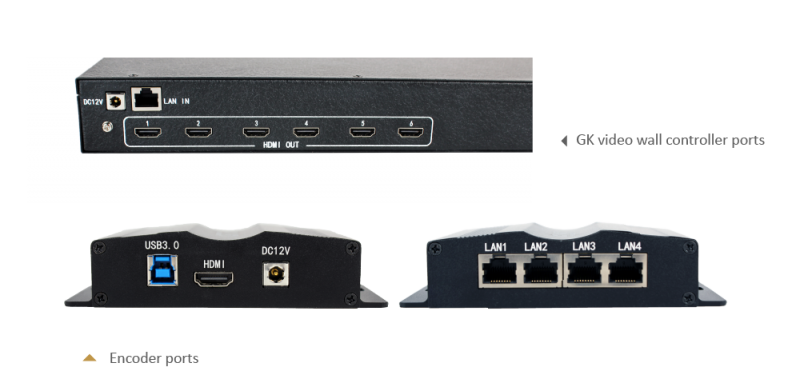

Structure
Browse the videos for tips and tricks.
| name | download |
|---|---|
| Video Wall Controller_DM(en) |  |
GK Video Wall Controller
GK Video Wall Controller is a multifunctional 4K high-quality image processor
- Spliced into a variety of irregular shapes at 360 degrees, showing creative and various content
- Simplify complex settings, only need to connect PC with controller. Easy to setup.
Artistic Video Walls are video walls that do not follow a more traditional grid or matrix pattern. It will attract more attention, or serve as a unique artistic feature in exhibition, lobby, shop window and mall. Allow users to display artistic images and videos through wall controller to create more space utilization value and visual effects.
Support 100m remote control
Using lossless compression technology, through the encoder and RJ45 cable, can expand the transmission distance up to 100m, so computer can be easily controlled from a distance.
*The distance from computer to display screen can be up to 100m
Output 1080P for every HDMI port
Support HDMI 1.4a high-quality output for every HDMI port. When the output is more than 16 ports , the highest resolution can be up to 8K@30Hz.
Visualized and artistic splicing control
Support point-to-point screen function. Each image will not be distorted when rotating at any angle.
Support multiple devices in series, up to 64 ports output
Support 64 ports output at most. For more splicing needs, additional ports controllers can be customized.
Frame elimination, splicing more natural
Support image edge adjustment to make it more natural. The images won’t feel cut, the proportions are preserved well.
Copy and reverse each screen
Copy feature: All screens present the same.
Reverse feature: Can reverse for the upper and lower rows or any screen.
Freely scale and position
Suitable for exhibition, lobby, shop window and mall etc.
| Input Interface | USB3.0 |
| Output Interface | HDMI 1.4a X6 |
| Resolution | Artistic Video Wall: 8K–7680*4320 ， 4K–3840*2160， 2K–1920*1080 Video Wall: 1920×1080，1280×720，1024×768 ，800×600 |
| Operation System | Windows10 (pro) intel I5 (10th Gen), dual channel 8GB ram |
| Connect | USB 3.0 cable；RJ45 network cable |
| Power interface | 12V2A |
| Power Supply | AC 100~240V , DC 12V 2A /DC 12V 5A |
| Series mode | This model is 6 ports, multiple units can be connected in series, supports up to 64 outputs (12/18 ports type is also available) |
| Weight | Gross weight:3.37Kg/ Encoder:184g |
| Size | 440mm x 226mm x 56mm / Encoder:105x75x30mm |
| Contents | Processor*1, Encoder*1, USB3.0 data cable*1, HDMI transmission line*1, RJ45(5M)*1, 12V2A adapter*1, 12V5A adapter*1 |
Diagram
Structure
Browse the videos for tips and tricks.
| name | download |
|---|---|
| Video Wall Controller_DM(Ch) | |
