QuattroPod
QuattroPod
- No app required
- Click to cast wirelessly
- It supports a full screen, two split screens and four split screens.
- 4K resoluiton presents the best visual quality.
802.11ac Wi-Fi 5G
Supports iOS、Android、MAC、Windows system.
- There are four kinds of ports「Mini Display/RJ45/USB/HDMI」
- PoE charging brings safety and convenience.
QuattroPod
through wireless mirroring.
An essential tool for business presentations
QuattroPod features many-to-one.One Receiver can receive the maximum of 64 Transceivers.
It supports a full screen, two split screens and four split screens. There are at most four files can be shown on the screen at the same time.
across every office software
QuattroPod supports iOS, Android, MAC, Windows system. It is suitable for PC, cellphones, tablets and other devices to cast on TV and projectors.Connecting QuattroPod and casting reports on the screen enhances efficiency of the meeting processing.
4K resoluiton presents the best visual quality.
QuattroPod presents Ultra HD 4K video and audio accurately. Quick video and audio processing technology supports video-play mode and play fluently.
Click to cast wirelessly
Make wireless presentations in seconds with a click of a button.
No app required
Plug, click and cast wirelessly from your favorite smartphone.
wireless or cable connection
more convenient in both ways
QuattroPod transmit signal by 802.11ac Wi-Fi 5G peer to peer wirelessly. Its transmission distance is up to 30M, and it supports Ethernet transmission as well. It is an essential tool for business conferences.
multiple ways to connection
There are four kinds of ports [Mini Display/RJ45/USB/HDMI]. Two ways to connection: wireless or cable. Easy connection and high compatibility.
customized user interfaces
Users can change the boot screen and make their own user interfaces for business used as desired.
PoE charging brings safety and convenience.
QuattroPod supports Power over Ethernet(PoE) charging. It becomes much safer and also reduces complicated wiring problems.
| Video outputs | R01 – 1*HDMI |
| output resolution | 4K @ 30fps |
| Number of split screens | Up to 4 |
| Audio | Via HDMI or Bluetooth |
| Wireless standard | 802.11ac |
| Connection – R01 | RJ45(support PoE), USB |
| Connection – T01 | RJ45(support PoE), USB, HDMI, DB2 |
| Power – R01 | DC – in 5V 2A, PoE 5V 3A |
| Power – T01 | DC – in 5V 1A, PoE 5V 3A |
| Dimensions – R01 | 180*80*25 mm |
| Operation systems | Win7/8/10 and above Mac 10.9 and above iOS 9 and above Android 5 and above |
接口說明

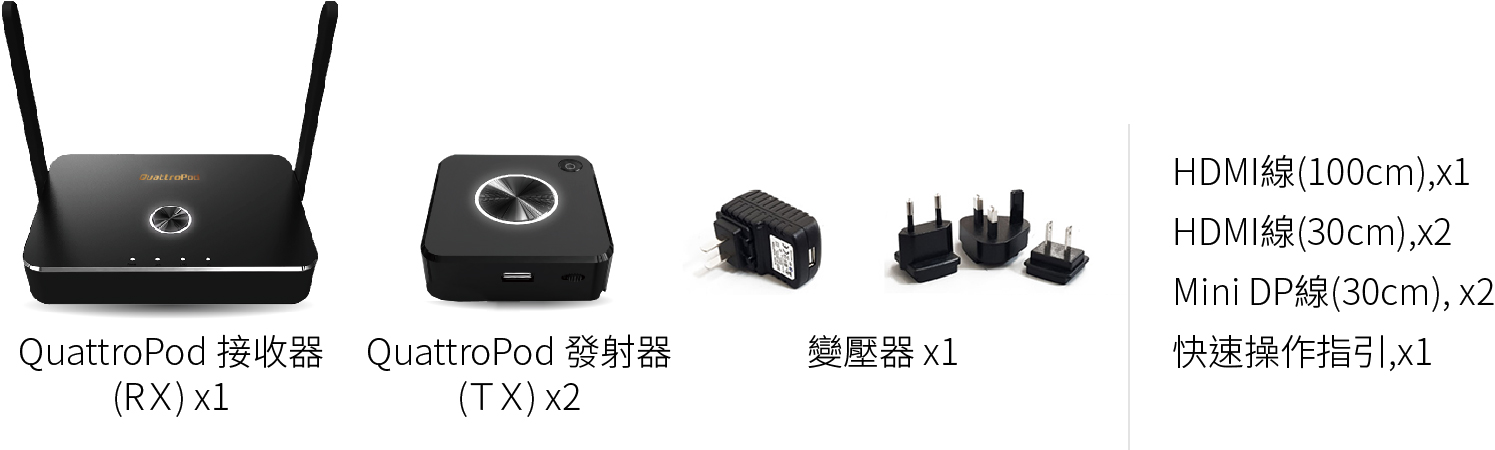

標準配備
Browse the videos for tips and tricks
| name | download |
|---|---|
| EZCast_QuattroPod_DM(Ch) |  |
| EZCast_QuattroPod_Quick Start Guide(Ch/En) | |
QuattroPod
through wireless mirroring.
An essential tool for business presentations
QuattroPod features many-to-one.One Receiver can receive the maximum of 64 Transceivers.
It supports a full screen, two split screens and four split screens. There are at most four files can be shown on the screen at the same time.
across every office software
QuattroPod supports iOS, Android, MAC, Windows system. It is suitable for PC, cellphones, tablets and other devices to cast on TV and projectors.Connecting QuattroPod and casting reports on the screen enhances efficiency of the meeting processing.
4K resoluiton presents the best visual quality.
QuattroPod presents Ultra HD 4K video and audio accurately. Quick video and audio processing technology supports video-play mode and play fluently.
Click to cast wirelessly
Make wireless presentations in seconds with a click of a button.
No app required
Plug, click and cast wirelessly from your favorite smartphone.
wireless or cable connection
more convenient in both ways
QuattroPod transmit signal by 802.11ac Wi-Fi 5G peer to peer wirelessly. Its transmission distance is up to 30M, and it supports Ethernet transmission as well. It is an essential tool for business conferences.
multiple ways to connection
There are four kinds of ports [Mini Display/RJ45/USB/HDMI]. Two ways to connection: wireless or cable. Easy connection and high compatibility.
customized user interfaces
Users can change the boot screen and make their own user interfaces for business used as desired.
PoE charging brings safety and convenience.
QuattroPod supports Power over Ethernet(PoE) charging. It becomes much safer and also reduces complicated wiring problems.
| Video outputs | R01 – 1*HDMI |
| output resolution | 4K @ 30fps |
| Number of split screens | Up to 4 |
| Audio | Via HDMI or Bluetooth |
| Wireless standard | 802.11ac |
| Connection – R01 | RJ45(support PoE), USB |
| Connection – T01 | RJ45(support PoE), USB, HDMI, DB2 |
| Power – R01 | DC – in 5V 2A, PoE 5V 3A |
| Power – T01 | DC – in 5V 1A, PoE 5V 3A |
| Dimensions – R01 | 180*80*25 mm |
| Operation systems | Win7/8/10 and above Mac 10.9 and above iOS 9 and above Android 5 and above |
接口說明
標準配備
Browse the videos for tips and tricks
| name | download |
|---|---|
| EZCast_QuattroPod_DM | |
| EZCast_QuattroPod_Quick Start Guide | |
Comparisons with Products
QuattroPod
- HDMI / USB / MiniDP / RJ45
- (TX)size：80x80x25mm
- Reciver(RX) x1 Transmitter(TX) x2
- Output resolution 4K in / 4K out
QuattroPod MINI
- HDMI / USB
- (TX)size：60x60x22mm
- Reciver(RX) x1 Transmitter(TX) x2
- Output resolution 1080P in / 4K out
